2. Instruments portfolio India
  3. Pressure mechanical
Product portfolio

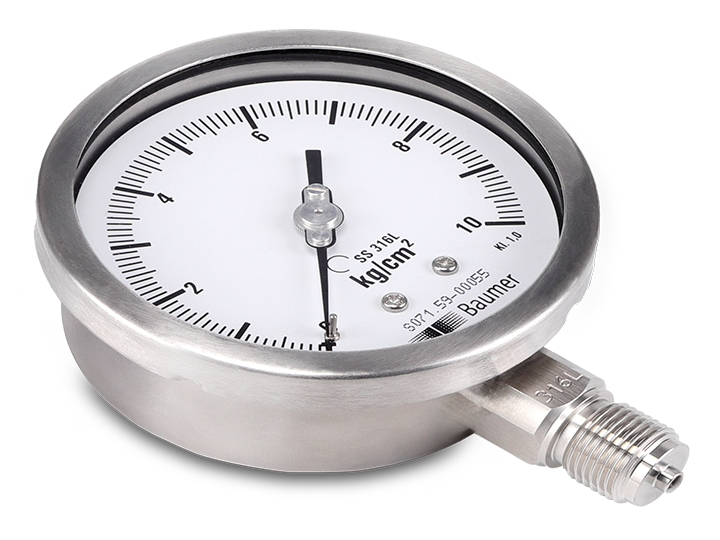

Pressure gauges

Pressure gauges

  • Types: Industrial, Solid front, Utility, Capsule, Diaphragm,
    with Electric Contact, Test gauge
  • Dial sizes: 40 mm to 250 mm
  • Ranges: 0 … 25 mbar to 0 … 1600 bar
  • Wetted parts: AISI 316L, Monel, Copper alloy
  • Cases: Steel, Stainless steel, Polypropylene
  • General purpose and process industry
Open in product selector

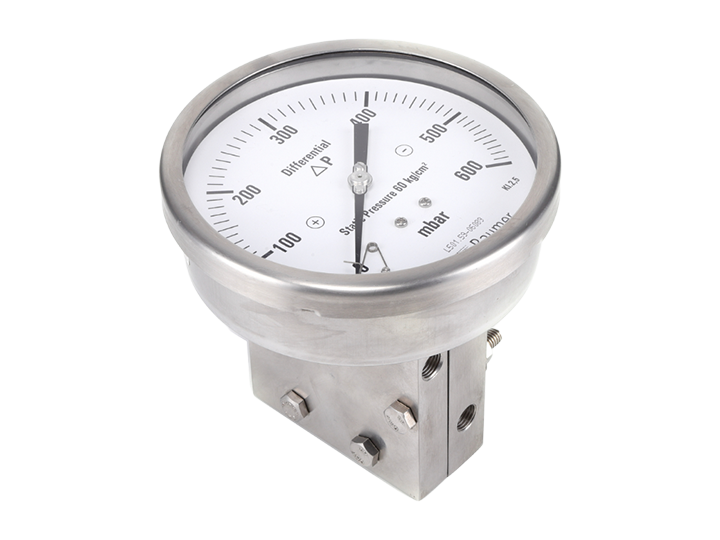

Differential pressure gauges

Differential pressure gauges

  • Types: Bellow, Diaphragm, Piston
  • Wetted parts: AISI 316L, Monel
  • Dial sizes: 63 mm, 100 mm, 150 mm
  • Ranges: 0 … 25 mbar to 0 … 40 bar
  • Static pressure: max. 100 bar
  • Differential pressure measurement
Open in product selector

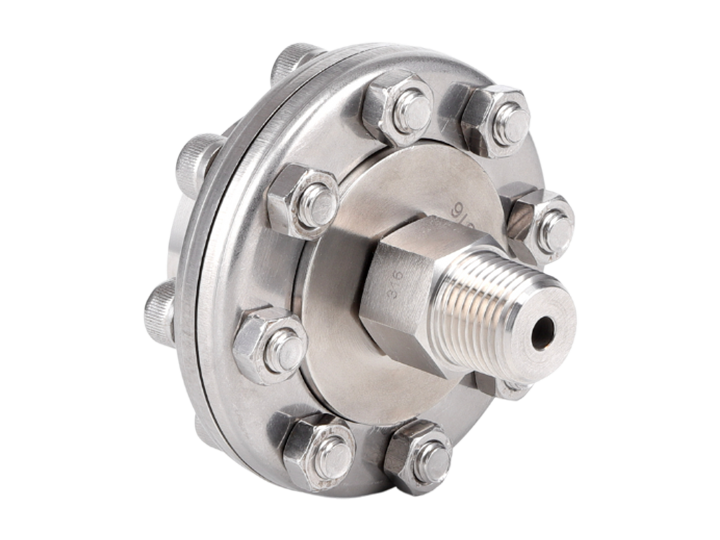

Diaphragm seals

Diaphragm seals

  • Types: Threaded, Flange, Hygienic
  • Wetted parts: Stainless steel, Exotic materials and Coatings
  • Ranges: 0 … 600 mbar to 0 … 600 bar
  • Large selection of process connections
  • Filling fluids: Silicon DC200, Foodgrade oil, Halocarbon oil and others
  • Can be integrated with Pressure Gauges, Pressure Switches, Differential Pressure Gauges, Pressure Transmitters, DP Transmitters
Open in product selector

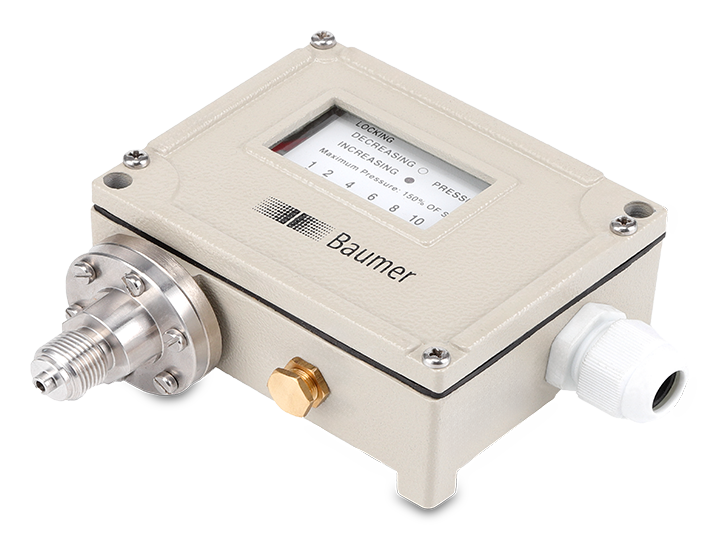

Pressure switches

Pressure switches

  • Types: Standard and Explosion proof version
  • Excellent repeatability
  • Measuring ranges: -20 … 20 mbar to 2 … 400 bar
  • Deadband fixed or adjustable
  • Adjustable setpoint
  • Light weight and compact design
Open in product selector

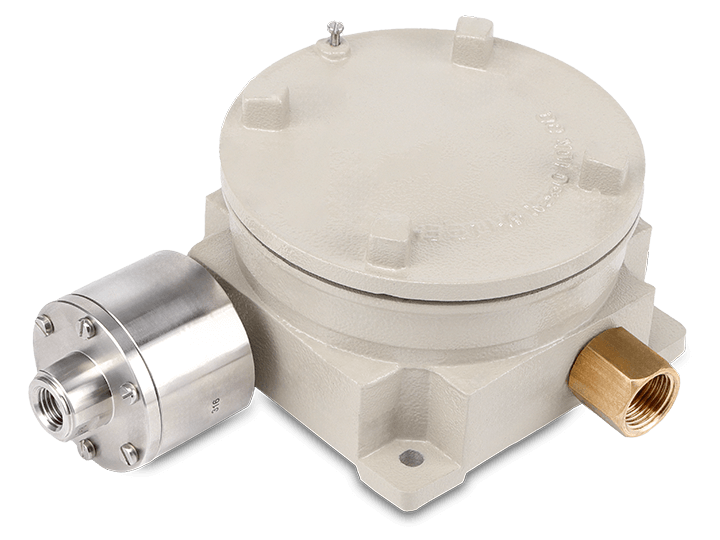

Differential pressure switches

Differential pressure switches

  • Types: Standard and Explosion proof version
  • Excellent repeatability
  • Measuring ranges: 0.5 … 25 bar
  • Adjustable setpoint
  • Light weight and compact design
Open in product selector

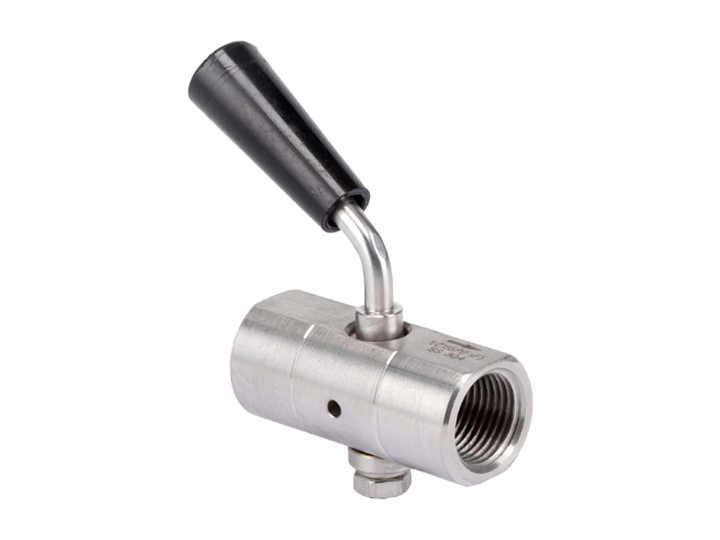

Accessories pressure

Accessories pressure

  • Types: Cooling adapters, Gauge cocks, Overpressure protectors, Pulsation dampners, Siphons and Flushing rings
  • Increase the life time of pressure gauges
  • Wetted parts: Stainless steel and other materials
  • Easy installation
  • Can be used with Pressure Gauges, Pressure Switches, Differential Pressure Gauges, Pressure Transmitters, DP Transmitters
Open in product selector
