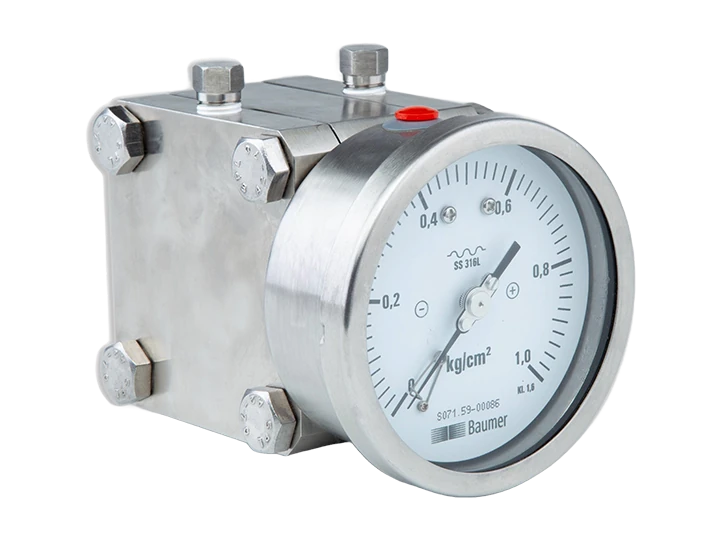

Technical data
Housing
- Nominal size
-
- 100 mm
- Case materia
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Bezel ring material
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Window material
-
- Shatterproof/safety glass
- Gasket & filling plug
-
- Neoprene & EPDM
- Protection rating (IS/IEC 60529)
-
- IP65
- Dial
-
- White, Aluminium
- Pointer
-
- Black, Aluminium
- Movement material
-
- Stainless steel AISI 304 SS
- Element chamber filling
-
- Silicon oil (others on request)
- Diaphragm sealing gasket
-
- Viton
Temperature
- Ambient temperature
-
- -25°C ... +65°C
- Process temperature
-
- Max +100°C (not filled)
- Max +65°C (Glycerine filled)
Wetted parts
- Process connection material
-
- Stainless steel AISI 316L
(Optional) Monel
- Stainless steel AISI 316L
- Bourdon tube
-
- Stainless steel AISI 316L
(Optional) Monel
- Stainless steel AISI 316L
Performance
- Accuracy according to EN 837-1
-
- Class 1.6 (Ascending order)
- Min. measuring range
-
- 0 ... 600 mbar
- Max. measuring range
-
- 0 ... 40 bar
- Static pressure
-
- 40 bar up to ranges 60 mbar
- 40 bar up to ranges 60 mbar
- Thermal drift (reference: +20 °C)
-
- ± 0.8 % FS/10K
- Optional electric contacts
-
- (For dry version, with ingress protection up to IP 55 & polycarbonate dome as a window)
- For range 1 bar & above Mechanical snap-action contact 1 or 2 set points
- For range 100 mbar & above Inductive contacts 1 or 2 set points
- Electrical data
-
- Number of setpoints 1 or 2
- Electrical connections DIN connector M16 x 1.5
- Type of contact Snap-Action contact
- Max. load of contact (Snap action contact) 230 VAC, 1 Amp / 48
VDC, 0.5 Amp
Inductive type - feeding 8V
Weight
- Bottom connection
-
- 6150 g unfilled
