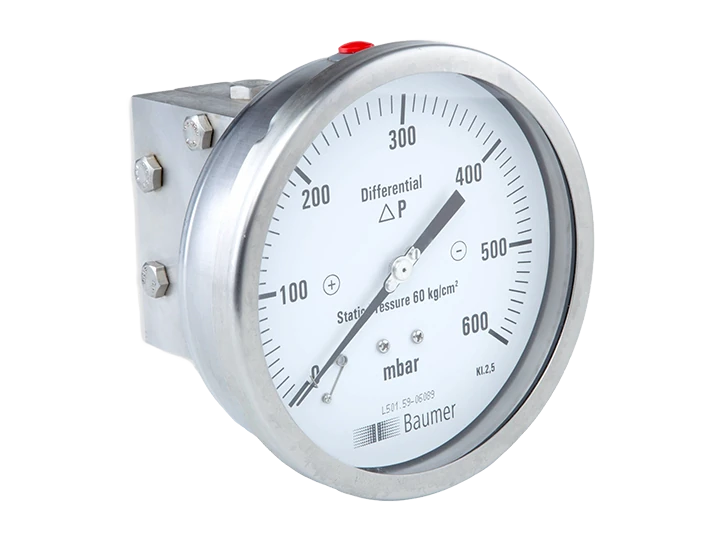

Technical data
Housing
- Nominal size
- 150 mm
- Case material
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Bezel ring material
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Window material
-
- Shatterproof/safety glass
- (Optional) Plexi glass
- Gasket
- Neoprene
- Protection rating (IS/IEC 60529)
- IP65
- Dial
- White, Aluminium
- Pointer
- Black, Aluminium
- Movement material
-
- Stainless steel AISI 304 SS
- Stainless steel AISI 316 SS (Optional)
Temperature
- Ambient temperature
-
- -25°C ... +65°C
- Media temperature
-
- Max +100°C (not filled)
Max +65°C (Glycerine filled)
- Max +100°C (not filled)
Wetted parts
- Process connection material
-
- Stainless steel AISI 316L
(Optional) Monel
- Stainless steel AISI 316L
- Diaphragm
-
- Stainless steel AISI 316L
(Optional) Monel
- Stainless steel AISI 316L
Performance
- Accuracy according to EN 837-1
- Class 2.5 (Ascending order)
- Min. measuring range
- 0 ... 25 mbar
- Max. measuring range
- 0 ... 10 bar
- Static pressure
-
- 10 bar up to ranges 60 mbar
- 40 bar for ranges 100 mbar to 250 mbar
- 60 bar for ranges 400 mbar & above
- (Optional) 100 bar
- Thermal drift (reference: +20 °C)
- ± 0.8 % FS/10K
-
Optional electric contacts
(For dry version, with ingress protection up to IP 55 & polycarbonate dome as a window) - For range 1 bar & above : Mechanical snap-action contact 1 or 2 set points
For range 100 mbar & above : Inductive contacts 1 or 2 set points - Electrical data
- Number of setpoints : 1 or 2
- Electrical connections : DIN connector M16 x 1.5
- Type of contact : Snap-Action contact
- Max. load of contact: (Snap action contact) 230 VAC, 1 Amp / 48 VDC, 0.5 Amp
Inductive type - feeding 8V
Weight
- Bottom connection
- 8260 g unfilled (Low pressure chamber)
4400 g unfilled (Low pressure chamber)
