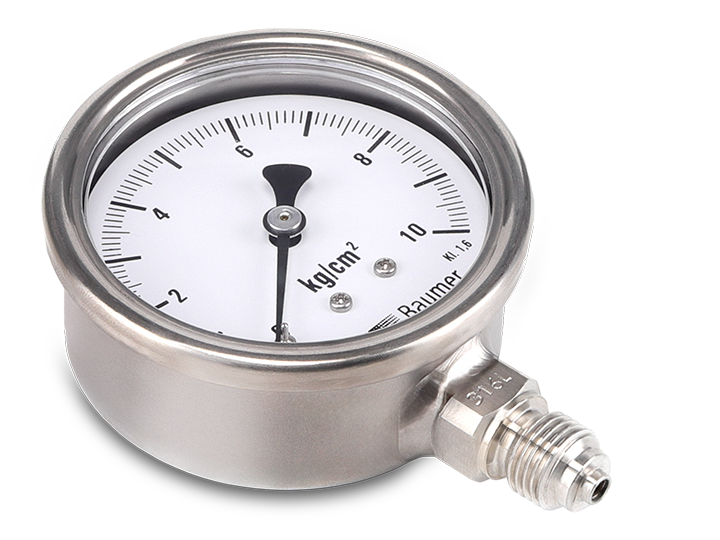

Technical data
Housing
- Nominal size
- 63 mm
- Case material
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Bezel ring material
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Window material
-
- Polycarbonate
(Optional) Shatterproof / safety glass / Toughened glass for bayonet design
- Polycarbonate
- Gasket & filling plug
-
- Neoprene for bayonet type & Silicon rubber for rolling type
- Protection rating (IS/IEC 60529)
- IP65
- Dial
- White, Aluminium
- Pointer
- Black, Aluminium
- Movement material
- Stainless steel AISI 304 SS
- Safety according to EN 837-1
- S1
Temperature
- Ambient temperature
-
- -25°C ... +65°C
- Media temperature
-
- Max +200°C (not filled)
Max +100°C (Glycerine filled)
- Max +200°C (not filled)
Wetted parts
- Process connection material
-
- Stainless steel AISI 316L
- Bourdon tube
-
- Stainless steel AISI 316L
Performance
- Accuracy according to EN 837-1
- Class 1.6
- Min. measuring range
- 0 ... 1 bar
- Max. measuring range
- 0 ... 1000 bar
- Type of pressure
- Gauge
Compound
Vacuum - Over pressure limit
-
- ≤ 100 bar : 125 % of Max. scale value
- > 100 to ≤ 600 bar : 115 % of Max. scale value
- > 600 to ≤ 1600 bar : 110 % of Max. scale value
- Thermal drift (reference: +20 °C)
- ± 0.4 % FS/10K
Weight
- Bottom connection
- 180 g unfilled
240 g filled
