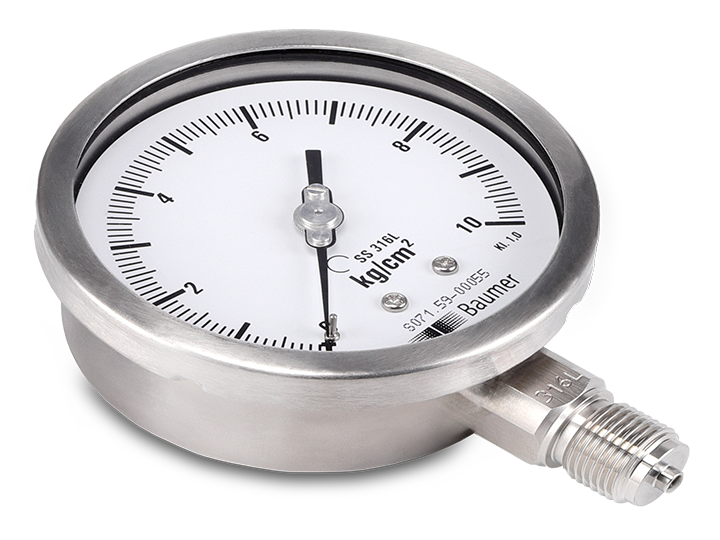

Technical data
Housing
- Nominal size
-
- 100 mm
- Case materia
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Bezel ring material
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Window material
-
- Plexi glass
- (Optional) Shatterproof/safety glass / Toughened glass
- Gasket & filling plug
-
- Neoprene
Viton (Optional)
- Neoprene
- Protection rating (IS/IEC 60529)
-
- IP65
- Dial
-
- White, Aluminium
- Pointer
-
- Black, Aluminium
- Movement material
-
- Stainless steel AISI 304 SS
- Stainless steel AISI 316 SS (Optional)
- Safety according to EN 837-1
-
- S1, Pressure gauge with blow-out device
Temperature
- Ambient temperature
-
- -25°C ... +65°C
- Media temperature
-
- Max +300°C (not filled)
- Max +100°C (Glycerine filled)
- Max +200°C (Silicone oil filled)
Wetted parts
- Process connection material
-
- Stainless steel AISI 316L
Monel (Optional)
- Stainless steel AISI 316L
- Bourdon tube
-
- Stainless steel AISI 316L
Monel (Optional)
- Stainless steel AISI 316L
Performance
- Accuracy according to EN 837-1
-
- Class 1
- Min. measuring range
-
- 0 ... 0.6 bar
- Max. measuring range
-
- 0 ... 1600 bar
- Type of pressure
-
- Gauge
Compound
Vacuum
- Gauge
- Over pressure limit
-
- ≤ 100 bar : 125 % of Max. scale value
- > 100 to ≤ 600 bar : 115 % of Max. scale value
- > 600 to ≤ 1600 bar : 110 % of Max. scale value
- Thermal drift (reference: +20 °C)
-
- ± 0.4 % FS/10K
Weight
- Bottom connection
-
- 640 g unfilled
- 935 g filled
