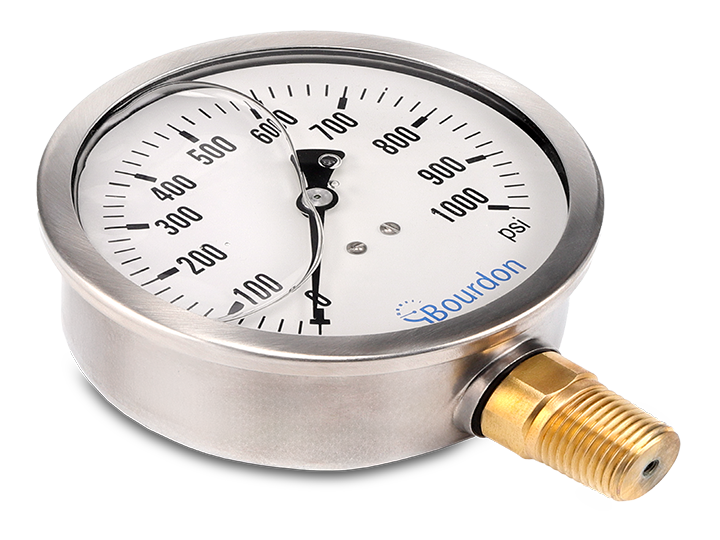

Technical data
Housing
- Nominal size
-
- 100 mm
- Case materia
-
- Stainless Steel AISI 304
- Bezel ring material
-
- Stainless Steel AISI 304 (Rolling type)
- Optional Bayonet type
- Window material
-
- Acrylic
- Dial
-
- White, Aluminium
- Pointer
-
- Black, Aluminium
- Movement material
-
- Copper alloy
- Gasket
-
- Elastomer
Temperature
- Ambient temperature
-
- -20°C ... +60°C
- Media temperature
-
- Max +100°C
Wetted parts
- Process connection material
-
- Copper alloy
- Copper alloy
- Bourdon tube
-
- Copper Alloy - pressures <6,000 psi
Stainless Steel - pressures >6,000 psi
- Copper Alloy - pressures <6,000 psi
Performance
- Accuracy according to EN 837-1
-
- Class 1.6
- Min. measuring range
-
- 0 ... 1 bar
- Max. measuring range
-
- 0 ... 1000 bar
- Type of pressure
-
- Gauge
Compound
Vacuum
- Gauge
- Over pressure limit
-
- Steady : 75% of full scale value
Fluctuating : 65% of full scale value
Short time : 100% of full scale value
- Steady : 75% of full scale value
- Thermal drift (reference: +20 °C)
-
- ± 0.4 % FS/10K
Weight
- Bottom connection
-
- 390 g unfilled
- 500 g filled
- Approval / Conformities
-
- -
