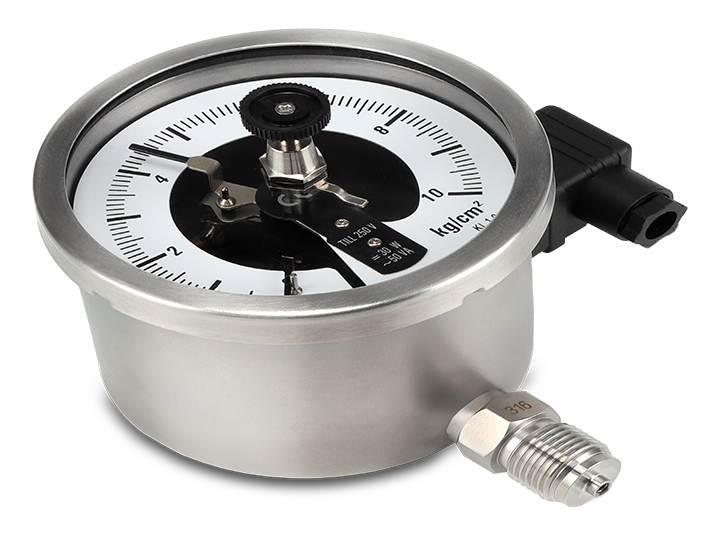

Technical data
Housing
- Nominal size
-
- 100 mm
- Case materia
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Bezel ring material
-
- Stainless steel AISI 304
- Stainless steel AISI 316 (Optional)
- Window material
-
- Plexi glass
- Gasket & filling plug
-
- Neoprene
(Optional) Viton
- Neoprene
- Protection rating (IS/IEC 60529)
-
- IP65
- Dial
-
- White, Aluminium
- Pointer
-
- Black, Aluminium
- Movement material
-
- Stainless steel AISI 304 SS
Temperature
- Ambient temperature
-
- -25°C ... +65°C
- Media temperature
-
- Max +100°C (not filled)
- +65°C / +65°C (Dielectric oil)
Wetted parts
- Process connection material
-
- Stainless steel AISI 316L
Monel (Optional)
- Stainless steel AISI 316L
- Bourdon tube
-
- Stainless steel AISI 316L
Monel (Optional)
- Stainless steel AISI 316L
Performance
- Accuracy
-
- Class 1
- Min. measuring range
-
- 0 ... 1.6 bar
- Max. measuring range
-
- 0 ... 1600 bar
- Type of pressure
-
- Gauge
Compound
Vacuum
- Gauge
- Over pressure limit
-
- Steady: 75 % of full scale value
- Thermal drift (reference: +20 °C)
-
- ± 0.4 % FS/10K
- Electrical data
-
- Number of setpoints: 1 or 2
- Electrical connections : DIN connector M16 x 1.5
- Type of contact : Snap-Action contact
- Max. load of contact:
(Snap action contact) 230 VAC, 1 Amp / 48
VDC, 0.5 Amp
Inductive type - feeding 8V
Weight
- Bottom connection
-
- 840 g unfilled
