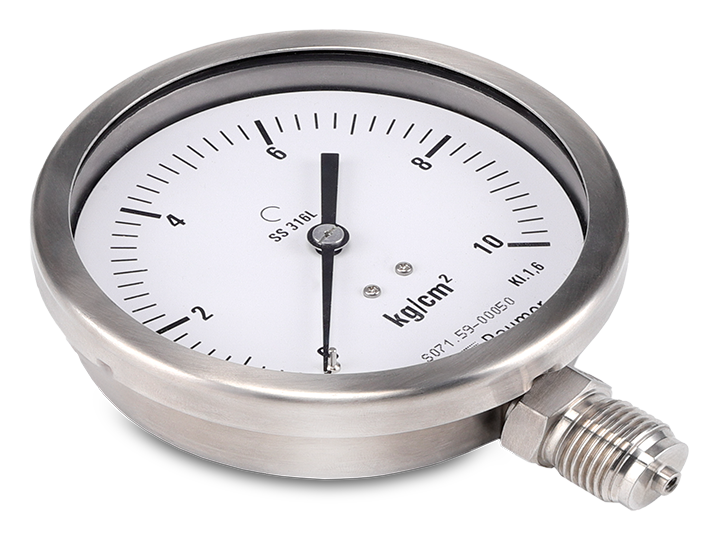

Technical data
Housing
- Nominal size
-
- 100 mm
- Case materia
-
- Stainless steel AISI 304
- Bezel ring material
-
- Stainless steel AISI 304
- Window material
-
- Sheet glass
- Gasket
-
- Neoprene for Bayonet type & Silicon rubber for rolling type
- Filling Plug
-
- Nitrile
- Protection rating (IS/IEC 60529)
-
- IP65
- Dial
-
- White, Aluminium
- Pointer
-
- Black, Aluminium
- Movement material
-
- Stainless steel AISI 304 SS
Temperature
- Ambient temperature
-
- -20°C ... +65°C
- Media temperature
-
- Max +180°C (not filled)
- Max +65°C (Glycerine filled)
- Max +200°C (Silicone oil filled)
Wetted parts
- Process connection material
-
- Stainless steel AISI 316
- Bourdon tube
-
- Stainless steel AISI 316L
Performance
- Accuracy according to EN 837-1
-
- Class 1.6
- Min. measuring range
-
- 0 ... 1 bar
- Max. measuring range
-
- 0 ... 400 bar
- Type of pressure
-
- Gauge
Compound
Vacuum
- Gauge
- Over pressure limit
-
- ≤ 100 bar : 125 % of Max. scale value
- > 100 to ≤ 600 bar : 115 % of Max. scale value
- Thermal drift (reference: +20 °C)
-
- ± 0.8 % FS/10K
Weight
- Bottom connection
-
- 420 g unfilled (Bayonet type)
- 405 g unfilled (Rolling type)
