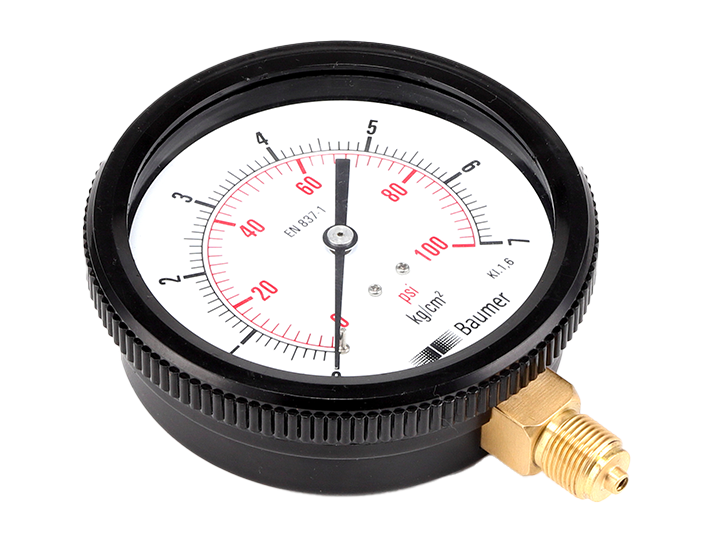

Technical data
Housing
- Nominal size
-
- 100 mm
- Case material
-
- Plastic
- Bezel ring material
-
- Plastic (Threaded)
- Window material
-
- Sheet glass
- Dial
-
- White, Aluminium
- Pointer
-
- Black, Aluminium
- Movement material
-
- Copper alloy
Temperature
- Ambient temperature
-
- -25°C ... +65°C
- Media temperature
-
- Max +60°C (not filled)
Wetted parts
- Process connection material
-
- Copper alloy
- Bourdon tube
-
- Copper alloy upto 70 Kgm2
Stainless steel AISI 316L above 70 Kg/cm2
- Copper alloy upto 70 Kgm2
Performance
- Accuracy
- ±1.6% of F.S.
- Min. measuring range
- 0 ... 1 bar
- Max. measuring range
- 0 ... 400 bar
- Type of pressure
- Gauge
Compound
Vacuum - Over pressure limit
- ≤ 100 bar : 125 % of Max. scale value
- > 100 to ≤ 600 bar : 115 % of Max. scale value
- Thermal drift (reference: +20 °C)
- ± 0.4 % FS/10K
Weight
- Bottom connection
-
- 300 g unfilled
