Technical data
Temperature
-
- |t| = absolute value °C
Technical Data
-
- Temperature range: –200 to 600 °C (–328 to 1112 °F) according to IEC 60751
- Variety of process connections & sheath diameters
- Various Cable options: PVC/PTFE/Silicon/Fiber Glass suitable for customer processes.
- Anti-kink Spring to protect the connecting cable
Application
-
- Mineral insulation enables flexibility and Durability.

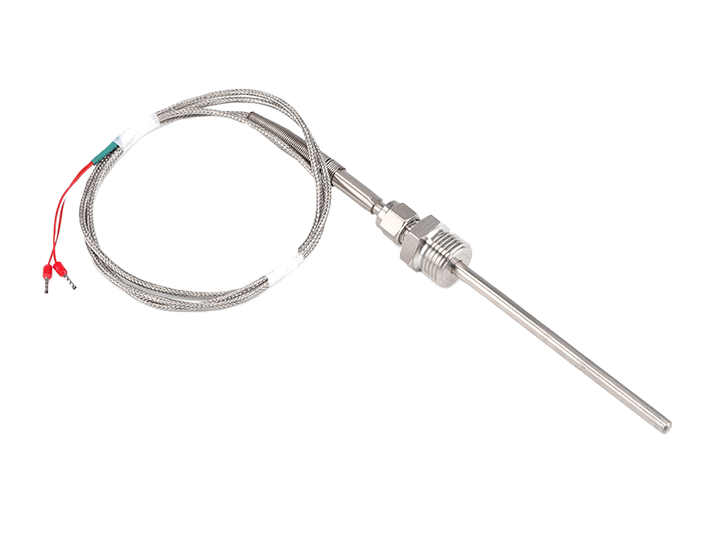

- RTD with adjustable process connection for adjustable insertion length.
- Reference Standard : IEC 60751 / DIN 43760
- The resistance thermometer is suitable for temperature measurement in machinery, laboratory equipment and plants with gaseous or liquid media such as air, water, oil, etc.
Accuracy
- Class AA:
-
- ± (0.1 + 0.0017 · |t| )
- Class A:
-
- ± (0.15 + 0.002 · |t| )
- Class B:
-
- ± (0.3 + 0.005 · |t| )
Ambient Conditions
- Ambient conditions :
-
- -40 to 85 °C
