Technical data
Temperature
-
- |t| = absolute value °C
Technical Data
-
- Temperature range: –200 to 600 °C (–328 to 1112 °F) according to IEC 60751
- Available in various standard sheath diameters and sheath materials.
Application
-
- Mineral insulation enables for use at higher temperature

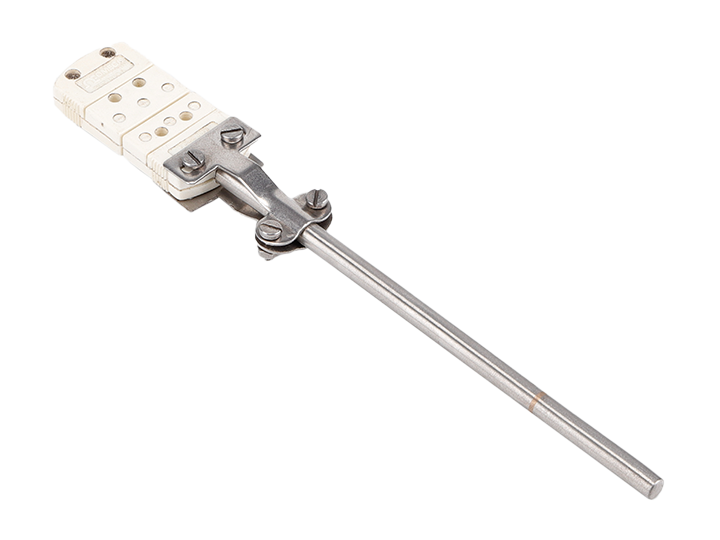

- RTD with adjustable process connection for adjustable insertion length
- Available in various standard sheath diameters and sheath materials
- Cold end termination will be with plug and jack connector for quick disconnection type application.
- Reference Standard : IEC 60751 / DIN 43760
Accuracy
-
- Class AA: ± (0.1 + 0.0017 · |t| )
- Class A: ± (0.15 + 0.002 · |t| )
- Class B: ± (0.3 + 0.005 · |t| )
Ambient Conditions
-
- -40 to 85 °C
