Technical data
Technical Data
-

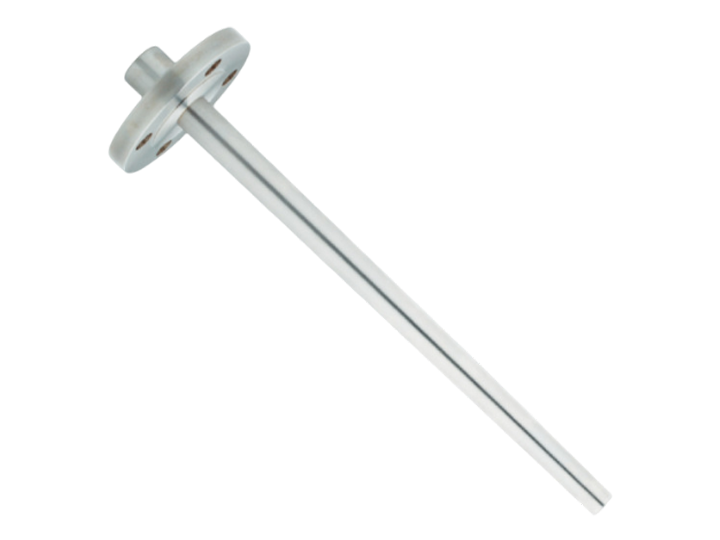

- These thermowells are manufactured from solid bar stock pieces and welded in between as per the longer length requirement and installed into the process by using a bolted flanged connection
- This design is suitable for all type of RTD’s, thermocouples, mechanical as well as digital thermometers which are having very longer lengths
- Full penetration welded at flange area
Application
-
- Chemical plants
- Petrochemical plants
- Engineering plants
- On shore
- Off shore & other similar process industries
Ambient Conditions
- Max. process pressure (static)
-
- 160 bar (2320.60 psi) depending upon configuration
- Maximum standard immersion length
-
- 3000 mm (118.11")
- Max. immersion length on request
-
- 5000 mm (196.85")
