Technical data
Technical Data
-
- Design as per PTC 19.3

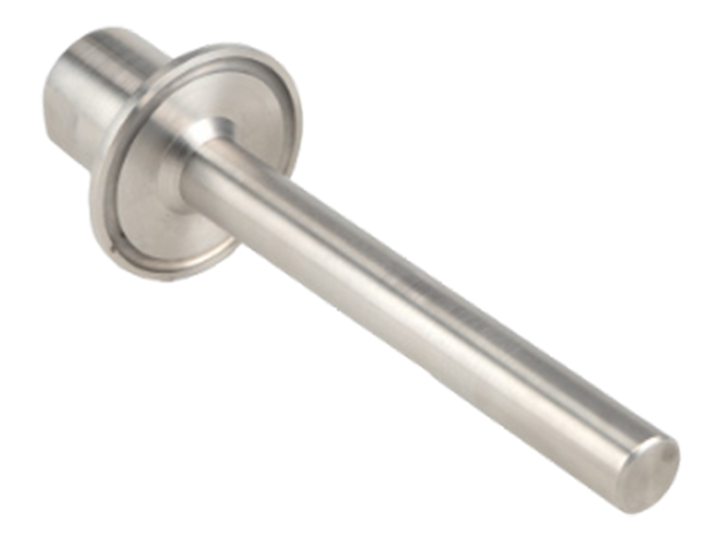

- These Thermowells are manufactured from solid bar stock and installed into the process by using clamp connection
- The smooth and polished surface of the wetted parts helps for easy cleaning and prevents potential contamination of the process
- This design is suitable for all type of RTD’s, Thermocouples, mechanical as well as digital thermometers
- Available in various shapes like Straight, Straight with reduced tip, partial taper & full taper
Application
-
- Biochemical plants
- Pharmaceutical plants
- Food and beverage industries
- Sterile process industries & other similar process industries
Ambient Conditions
- Max. process pressure (static)
-
- 40 bar (580 psi)
- Maximum standard immersion length
-
- 300 mm (11.81")
- Max. immersion length on request
-
- 1000 mm (39.37")
